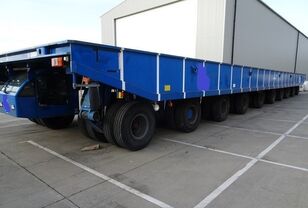

Přívěs modulární samohybný GOLDHOFER THP-LTSO 4 THP-LTSO 4

Goldhofer THP-LTSO 4
THP-LTSO 4
first registration: 05.2000
measurement : 6000x2980x1020mm
unloaden weight: 11400kg
laden weight: 48000/ 92000kg
tires: 205/65R 17,5
paintwork: blau

main characteristics
- can be combined with other modules longitudinal and transverse
- box - shaped middle frame with integrated air- and hydraulic oil tank
- at front and rear end of chassis integrated compression joints that allow
hooking in extra beams and
increasing of loading length through combinations in row
- two twin tired full floating axles with 8 tires in total per axle line
- axle aggregates mounted on chassis
- hydraulic axle compensation +/- 300 mm, hydro-pneumatic gas pressure
suspension and hose breakage
security valves at all axle aggregates
- chassis -integrated, hydro-mechanic 2 - circuit all wheel forced steering with
max. steering angle of axle
aggregates of +/- 60°
- 2 - circuit all wheel compressed air brake and spring load parking brake
- hydraulic locking pins
- A B S
- B P W - axle with drum brake

Technical Data

speed 1 km/h
5 km/h 50
km/h 80 km/h
Technical axle load per axle line 23.000 kg 23.000 kg
13.800 kg
12.400 kg
net weight (without equipment) 11.400 kg 11.400 kg
11.400 kg
11.400 kg
Max. payload 80.600 kg 80.600
kg 43.800
kg 38.200 kg

tires 205/65 R 17,5
